Referencia interna:
4511534
Marca:
TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|

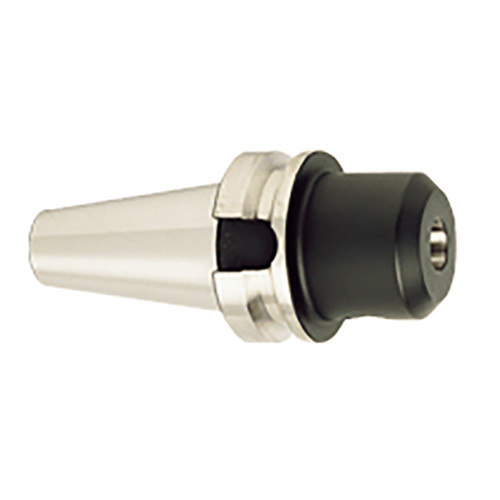

| Tipo de producto | Fresa |
| Categoría técnica | End Mill Holders |
| Familia / sistema | BT-EM E (for whistle notch) |
| Aplicación | Tapered shape interface |
| Material | Acero |
| Sistema de medida | Métrico |

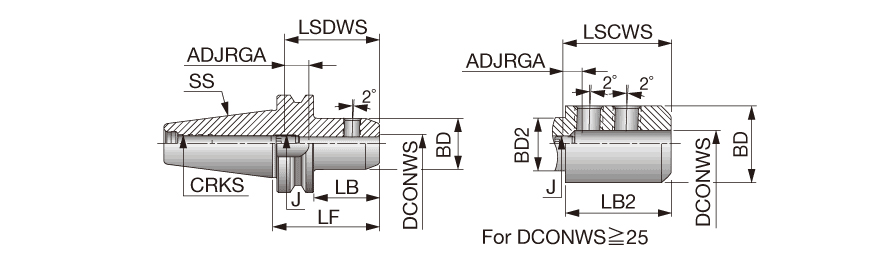

| Longitud total (OAL) | 125 mm |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm |
| Shank Size (SS) | 50. |
| Body Diameter (BD) | 98 mm |
| Body Length (LB) | 67 mm |
| Unidad | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
