Referencia interna:
4538013
Marca:
TUNGALOY

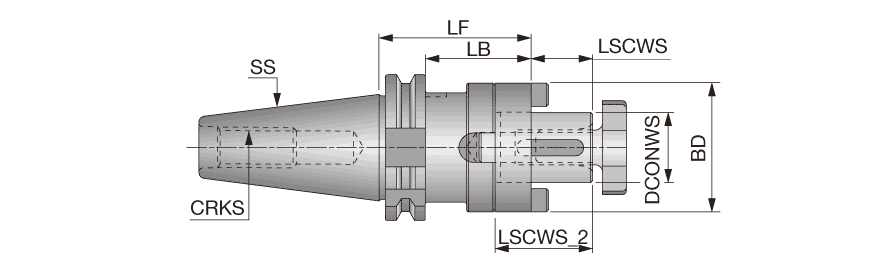

| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Shell Mill Holders |
| Familia / sistema | DIN69871-SEMC (combination) |
| Aplicación | Tapered shape interface |
| Material | Acero |
| Sistema de medida | Métrico |
| Longitud total (OAL) | 55 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm |
| Shank Size (SS) | SK50 |
| Body Length (LB) | 35.9 mm |
| Body Diameter (BD) | 58 mm |
| Unidad | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
