Referencia interna:
5650603
Marca:
TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|

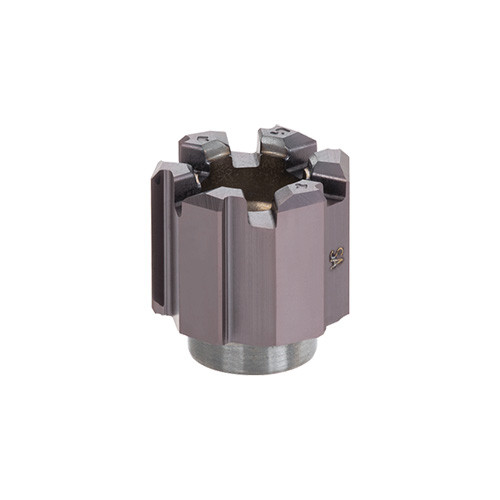

| Tipo de producto | Shell/Head Reaming Tools |
| Categoría técnica | Shell/Head Reaming Tools |
| Familia / sistema | Reaming heads with straight flute for blind holes (H7 hole tolerance). Reaming head with DC 11.5 mm or more can also be used for through holes. |
| Aplicación | Reaming |
| Materiales aplicables ISO | PAceroMAcero inoxidableKFundiciónNAluminio y no ferrososSSuperaleaciones y titanioHMateriales endurecidos |
| Grado | AH725 |
| Recubrimiento | TiAlN |
| Material | Carburo |
| Sistema de medida | Métrico |

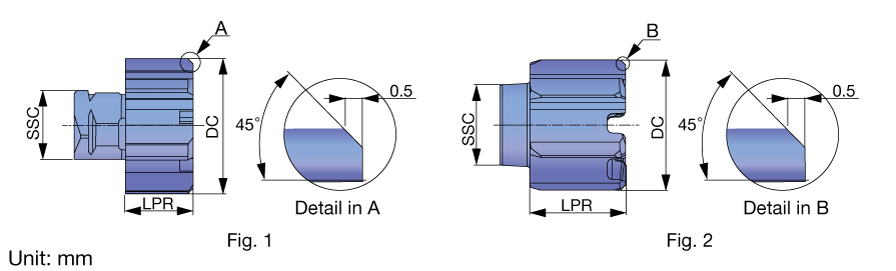

| Diámetro de corte (DC) | 12 mm |
| Protruding Length (LPR) | 9.3 mm |
| Insert Seat Size Code (SSC) | T5 |
| Flute Count (NOF) | 6 |
| Unidad | M |
