Referencia interna:
6794435
Marca:
TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Groove/Turn Indexable Holders |
| Familia / sistema | CAFR/L-CHP |
| Aplicación | Face grooving |
| Material | Acero |
| Sistema de medida | Pulgadas |

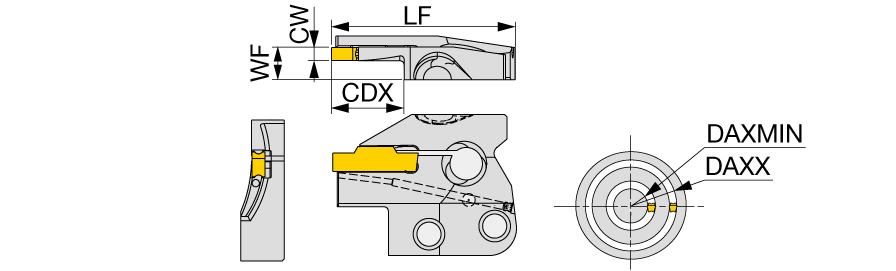

| Longitud funcional (LF) | 1.693" |
| Cutting Width Minimum (CWN) | 0.098" |
| Cutting Width Maximum (CWX) | 0.137" |
| Cutting Depth Maximum (CDX) | 0.472" |
| Functional Width (WF) | 0.295" |
| Unidad | I |
| Cutting Direction (HAND) | Right Hand |
