Referencia interna:
6816638
Marca:
TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Parting Off Indexable Holders |
| Familia / sistema | CCH |
| Aplicación | Parting off |
| Material | Acero |
| Sistema de medida | Pulgadas |

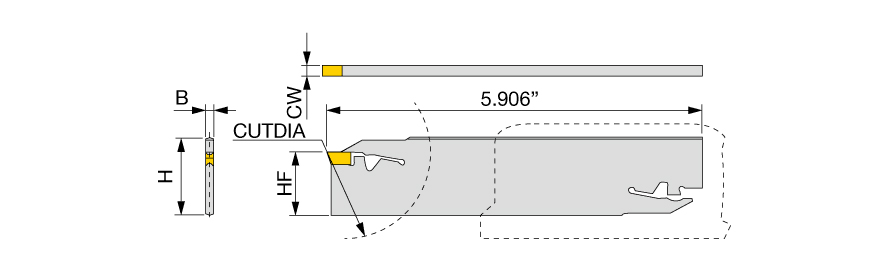

| Longitud total (OAL) | 5.906" |
| Shank Height (H) | 1.26" |
| Diámetro máximo de tronzado (CUTDIA) | 4.72" |
| Shank Width (B) | 0.165" |
| Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 2.362" |
| Insert Seat Size Code (SSC) | 50 |
| Overall Height (OAH) | 0.957" |
| Functional Width (WF) | 0.197" |
| Tool Assembly Length (LTA) | 2.756" |
| Unidad | I |
