Referencia interna:
6841267
Marca:
TUNGALOY

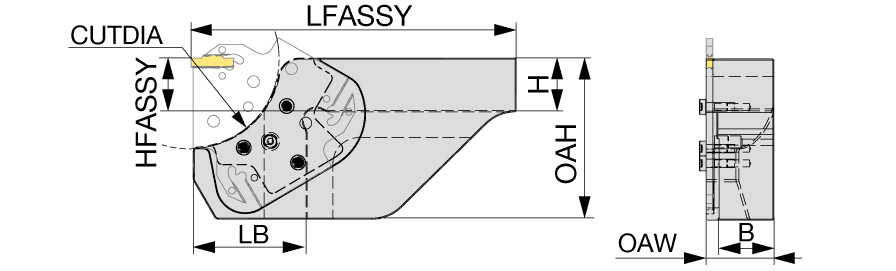

| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Parting Off Indexable Holders |
| Familia / sistema | CHTBR/L |
| Aplicación | Parting off |
| Material | Acero |
| Sistema de medida | Pulgadas |
| Longitud total (OAL) | 6.461" |
| Shank Height (H) | 1-1/4" |
| Diámetro máximo de tronzado (CUTDIA) | 4.724" |
| Shank Width (B) | 1.27" |
| Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 3.937" |
| Tool Assembly Length (LTA) | 0.906" |
| Unidad | I |
