Referencia interna:
6862376
Marca:

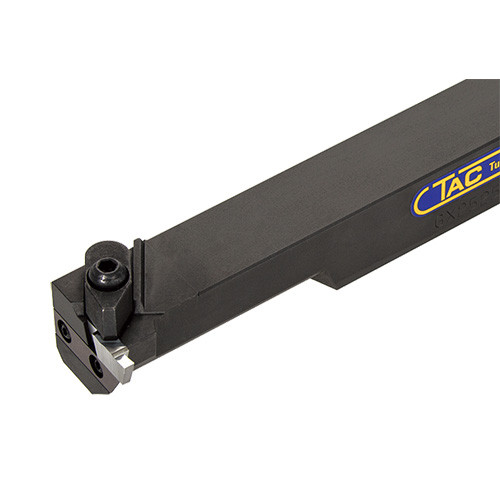

TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Groove/Turn Indexable Holders |
| Familia / sistema | GX-R/LI |
| Aplicación | Internal grooving |
| Material | Acero |
| Sistema de medida | Pulgadas |
| Longitud funcional (LF) | 4-1/2" |
| Cutting Width Minimum (CWN) | 0.039" |
| Cutting Width Maximum (CWX) | 0.177" |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.236" |
| Shank Height (H) | 3/4" |
| Shank Width (B) | 3/4" |
| Minimum Bore Diameter (DMIN) | 2.165" |
| Functional Width (WF) | 1.37" |
| Unidad | I |
