Referencia interna:
6880669
Marca:
TUNGALOY
| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Portaherramienta |
| Categoría técnica | Groove/Turn Indexable Holders |
| Familia / sistema | CTER/L |
| Aplicación | External grooving |
| Material | Acero |
| Sistema de medida | Pulgadas |

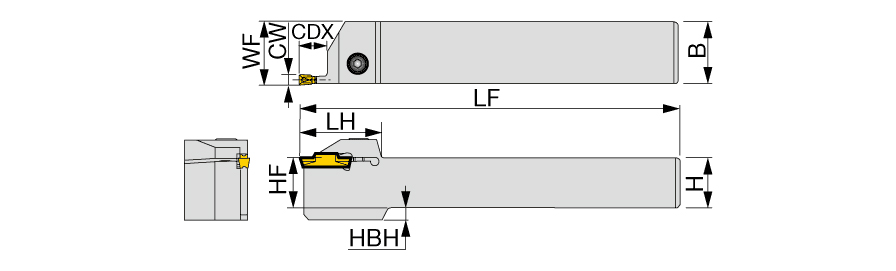

| Longitud funcional (LF) | 7" |
| Longitud de cabeza (LH) | 2.205" |
| Cutting Width Minimum (CWN) | 0.177" |
| Cutting Width Maximum (CWX) | 0.216" |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 1.26" |
| Shank Height (H) | 1-1/4" |
| Shank Width (B) | 1-1/4" |
| Functional Width (WF) | 1.269" |
| Unidad | I |
