Referencia interna:
LK014
Marca:
YG-1
| ESPECIFICACIONES TÉCNICAS | |
|---|---|
| Tipo de producto | Power Fresado Chuck |
| Línea / serie | Power Milling Chuck |
| Categoría | Tooling System |
| Unidad | pulgadas |
| TAPER NO | 40" |

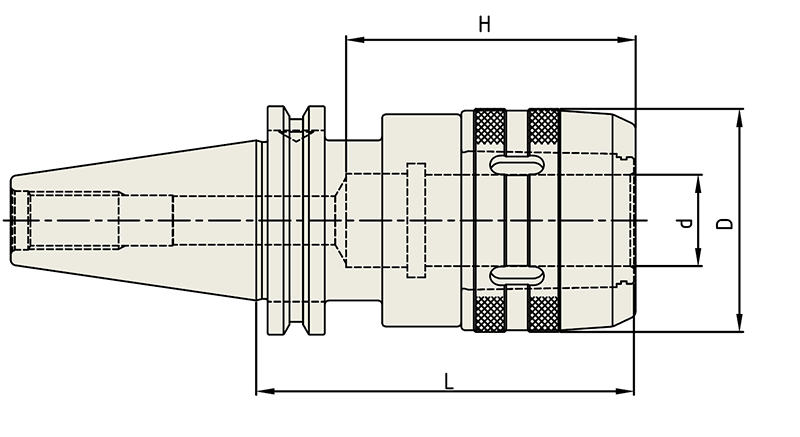

| MODELNo | CAT40-C1-4.13" |
| d111 | 1" |
| D11 | 2.461" |
| L | 4.134" |
| H | 3.15" |
| Aplicación / característica | High clamping forec enlengths the tool life and improves the machining surface quality, Flexible clamping diameter with immediate sleeves |
